Information from Wikipedia:
Circulating pumps are often used to circulate domestic hot water so that a faucet will provide hot water instantly upon demand, or (more conserving of energy) a short time after a user's request for hot water. In regions where water conservation issues are rising in importance with rapidly expanding and urbanizing populations local water authorities offer rebates to homeowners and builders that install a circulator pump to save water. In typical one-way plumbing without a circulation pump, water is simply piped from the water heater through the pipes to the tap. Once the tap is shut off, the water remaining in the pipes cools producing the familiar wait for hot water the next time the tap is opened. By adding a circulator pump and constantly circulating a small amount of hot water through the pipes from the heater to the farthest fixture and back to the heater, the water in the pipes is always hot, and no water is wasted during the wait. The tradeoff is the energy wasted in operating the pump and the additional demand on the water heater to make up for the heat lost from the constantly hot pipes.
While the majority of these pumps mount nearest to the hot water heater and have no adjustable temperature capabilities, a significant reduction in energy can be achieved by using a temperature adjustable thermostatically controlled circulation pump mounted at the last fixture on the loop. Thermostatically controlled circulation pumps allow owners to choose the desired temperature of hot water to be maintained within the hot water pipes since most homes do not require 120 °F (49 °C) degree water instantly out of their taps. Thermostatically controlled circulation pumps cycle on and off to maintain a user's chosen temperature and consume less energy than a continuously operating pump. By installing a thermostatically controlled pump just after the farthest fixture on the loop, cyclic pumping maintains ready hot water up to the last fixture on the loop instead of wasting energy heating the piping from the last fixture to the water heater. Often installing a circulation pump at the farthest fixture on hot water circulation loop due to limited available space, cosmetics, noise restrictions or lack of available power. Recent advancements in hot water circulation technology allow for benefiting from temperature controlled pumping without having to install the pump at the last fixture on the hot water loop. These advanced hot water circulation systems utilize a water contacting temperature probe strategically installed at the last fixture on the loop to minimize the energy wasted heating lengthy return pipes. Thermal insulation applied to the pipes helps mitigate this second loss and minimize the amount of water that must be pumped to keep hot water constantly available.
The traditional hot water recirculation system uses a dedicated return line from the point of use located farthest from the hot water tank back to the hot water tank. In homes where this return line was not installed the cold water line is used as a return line. The first of two system types has a pump mounted at the hot water heater while a "normally open" thermostatic control valve gets installed at the farthest fixture from the water heater and closes once hot water contacts the valve to control crossover flow between the hot and cold lines. A second type of system uses a thermostatically controlled pump which gets installed at the farthest fixture from the water heater. These thermostatically controlled pumps often have a built-in "normally closed" check-valve which prevents water in the cold water line from entering into the hot water line. Compared to a dedicated return line, using the cold water line as a return has the disadvantage of heating the cold water pipe (and the contained water). Accurate temperature monitoring and active flow control can minimize loss of cold water within the cold water line.
-~-~~-~~~-~~-~-
Please watch: "Pex Pipe Plumbing (The Complete Series) 👍👍👍 "
https://www.youtube.com/watch?v=t-2_-...
-~-~~-~~~-~~-~-
- union market, union university, valve definition, bladderwrack, watership down, united kingdom country postal code, union pacific, waterloo, blätterteig, tanks for sale, plumberx template, check mark, tank davis, united kingdom country code 2 letter, water chestnuts, softener salt pellets, tankless gas water heater, pumpkin bars, united kingdom country zip code, bladder tank losing pressure, pumpkin pie spice, united kingdom country flags, dielectric nipple, check my refund, pumped up kicks lyrics, bladder tank on well, pumped up kicks, pumpkin pancakes, valve corp, united kingdom country profile, water dispenser, valve stock, plumberx theme, bladder stones, tanked, bladder in spanish, united kingdom country or continent, softener sheets, valve knuckles, union station dc, softener system, pumpkin bread, united kingdom country abbreviation, united states country code 2 letter, watership down, tank games, blätterkrokant, dielectric material, tankie, checks unlimited, union bank and trust, bladder infection, united states country abbreviation, softener ball, watershed, water softener, valve steam, valve corporation, pumpkin recipes, blattner energy, waterpik, pumpernickel bread, softener pods, united kingdom country code, union savings bank, checkmate, tank abbott, check routing number, bladder tank vs expansion tank, softener salt lowes, dielectric constant of water, united kingdom country code iso, bladder tank menards, softener salt walmart, dielectric fittings, dielectric constant, dielectric mirror, waterboy, water softener, bladder prolapse, union station, pumpkin muffins, water dispenser, bladder tank pressure setting, tankini tops, softener salt crystals, pumpernickel, waterhole #3, bladder cancer, check cashing, water bill, pumpkin puree, pumpkin pie, plumberex 2003, check into cash, tankless water heater, dielectric, united kingdom countryside, dielectric breakdown, bladder tank leaking water, water heater, checkerboard vans, bladder tank pressure too low, watermelon, united kingdom country tag hoi4, softener pellets, softener resin, bladder tank diagram, bladder cancer treatment, union transfer, united kingdom country report, united states country map, waterfalls fortnite, bladder tank for water pump, softener laundry, blattered, watergate, valve stem caps, valve cover, water cycle, pumpkin soup, softener in spanish, valve body, union jack, checkers game, tank girl, checks and balances, waterfall, softener salt, blattering, dielectric fluid, bladder tank pressure, water heater, checkers, watershed, tankini, pumpkin cheesecake, united kingdom country code phone, union square cafe, valve knuckles price, tankless water heater cost, pumpkin cookies, tankathon, tank and the bangas, tank trouble 4, waterloo, dielectric grease, tank trouble, valve store, bladder tank replacement, dielectric strength, pumpkin roll recipe, softener for hair, united kingdom country name, dielectric definition, bladder tank lowes, dielectric constant formula, bladder tank pressure switch, waterfall locations, union county college, blatter german, united states country, tank trouble 2, dielectric constant units, water cycle, dielectric constant of paper, united states country list, blattaria, valve spring compressor, softener salt menards, check cashing near me, tanki, union city, valve stem, united states country profile, checks, pumpkin roll, union college, union leader, waterpik, softener salt delivery, check n go, watership down netflix, water bill, bladder tank repair, united states country code from australia, valve replacement, pumpkin, united states country code for whatsapp, blatterman built homes, bladder spasms, bladder tank cost, check powerball numbers, blatter idaho falls, watershed 2019, valve artifact, united kingdom country musicians, valve stem tool, themeforest plumberx, union square, check mark symbol, waterboy, united kingdom country map, watership down netflix, dielectric grease uses, dielectric permittivity, united kingdom country name list, united kingdom country code abbreviation, bladder, bladder pain, union station chicago, softener, united states country code, union station denver, water chestnuts, pumpkin seeds, checkers menu, plumberx wordpress theme, tank wife, united kingdom countryball, valve games, dielectric union, water bear, dielectric constant of air, tank man, watergate, water bear, watercress, bladder tank toilets, bladder tank problems, check engine light, bladder tank home depot, bladder tank sizing, dielectric grease walmart, waterfalls in fortnite, pimlico plumbers, union bank, watermelon, water, union bank login, check internet speed, softener parts, valve cover gasket, bladder cancer symptoms, union public schools, valve adjustment, watercress, united states country zip code, valve trombone, bladder tank prices, pump it up, checkers near me, united states country code 001, united kingdom country list, softener cleaner, water pollution, softener beads

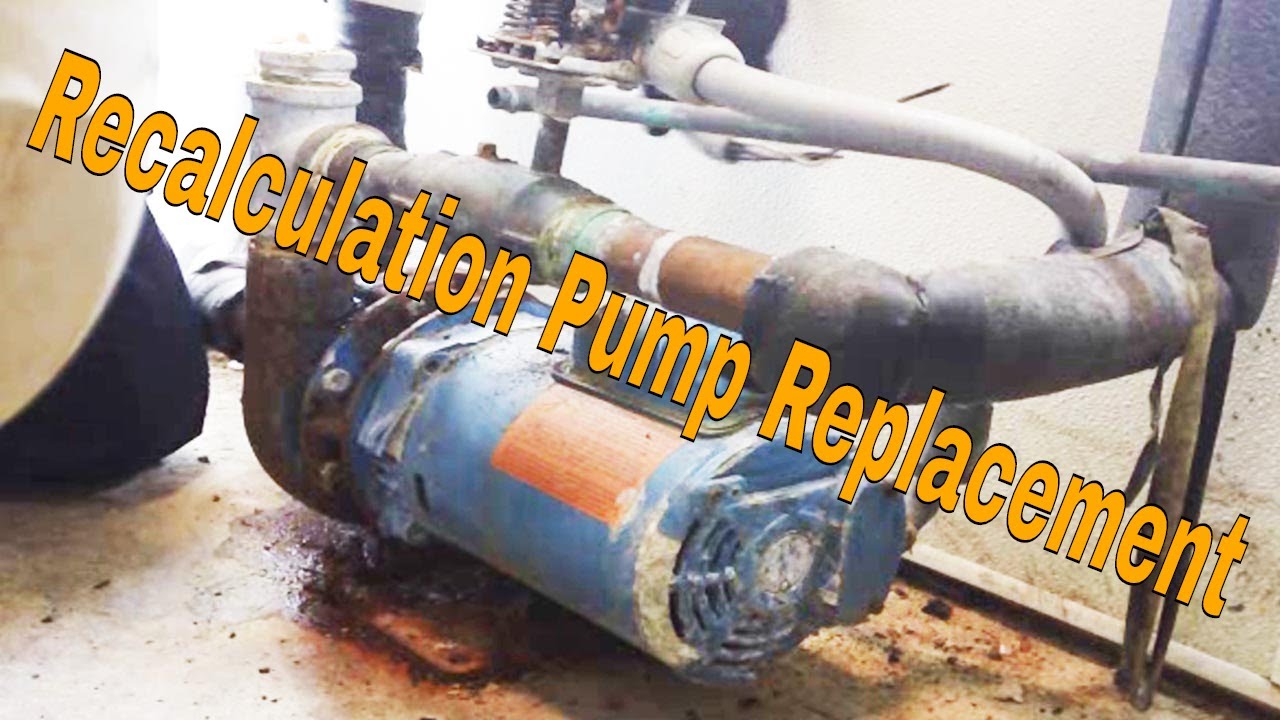

Recalculation Pump Replacement 👍👍👍 |
